SOLD - 1978 Beech Bonanza F33A - SOLD


N2023L is a two owner Bonanza F33A based in Indianapolis, Indiana area since new. The original owner was an attorney for a the Eli Lilly company, who sold it locally to an engineer in the auto racing industry in 2001.  There is no known damage history.

Equipped with GAMI-jectors and GAMI baffling, this plane runs extremely smooth lean of peak, and is very economical, cruising at 165-169 knots true airspeed on 12.0 to 12.5 GPH or so.  This engine has been run lean of peak since the break-in was complete, and has all better than 70/80 compressions on the original cylinders from the major, and very low oil burn.  The crankcase is a late phase III heavy case with the 7th stud. There is a record of every start that this engine has had since the major which will be included with the plane. It shows every quart of oil that has been added, as well as graphs of the oil analysis results.  There is a fresh oil analysis, just done within the last 10-15 hours of operation.

This is a ready to go plane that flew 125 hours in the 6 months before we took it in trade.  It is nicely set up for IFR operations, and will make for very reliable travel for the next owner. It is fully de-iced with TKS wing, tail, prop and windshield protection.

Larson Aircraft took this plane in trade for a Colemill President II Baron.

Please don't hesitate to call (303) 503-8356 with further questions regarding N2023L, insurance, finance options, upgrades or transition training. This plane is based at the Longmont Vance Brand Airport in the Denver area and can be viewed by appointment.





Back to Larson Aircraft Sales Home Page

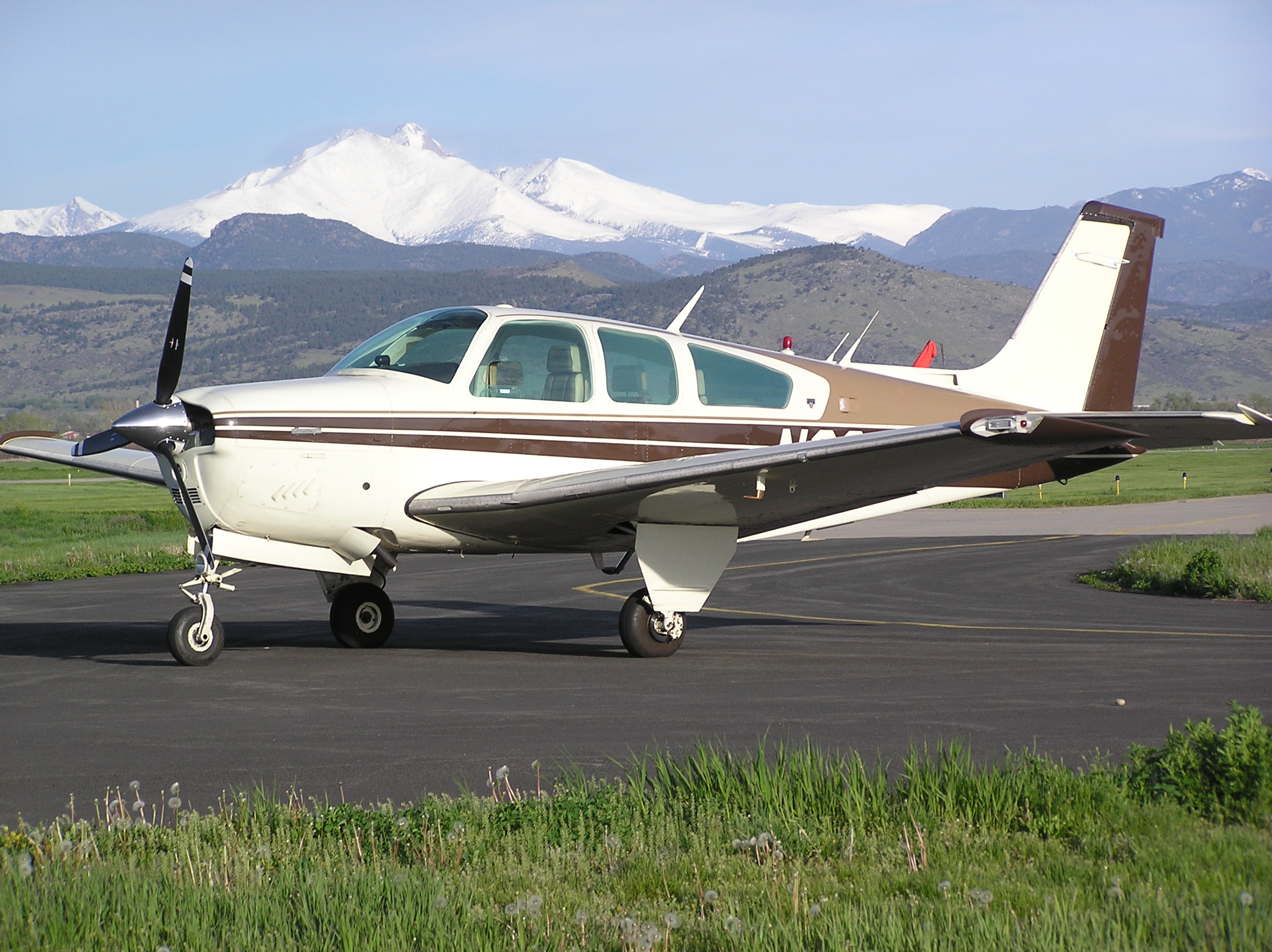

1978 Beech Bonanza F33A
CE-802

N2023L
        • 4506.48  Hours Total Time Since New
        • Logbook, Airframe, NTSB/Incident Reports and Form 337 review indicate No Major Damage History.
        • June 2010 Annual
        • Fresh Wing Spar Web Inspection 12/09
        • New Magnesium Elevators 2002
        • New Fuel Bladders 2000 and 2006
        • Complete Logbooks

        Optional Equipment:

        • TKS Anti Icing (Wings and Tail Surfaces, Windshield and Prop)
        • Three-Blade Propeller
        • Large Baggage Door
        • Shoulder Harnesses (Four front seats)
        • Long Range Fuel
        • GAMI Injectors and Baffling
        • Dual Yoke
        • Tanis Engine Preheater

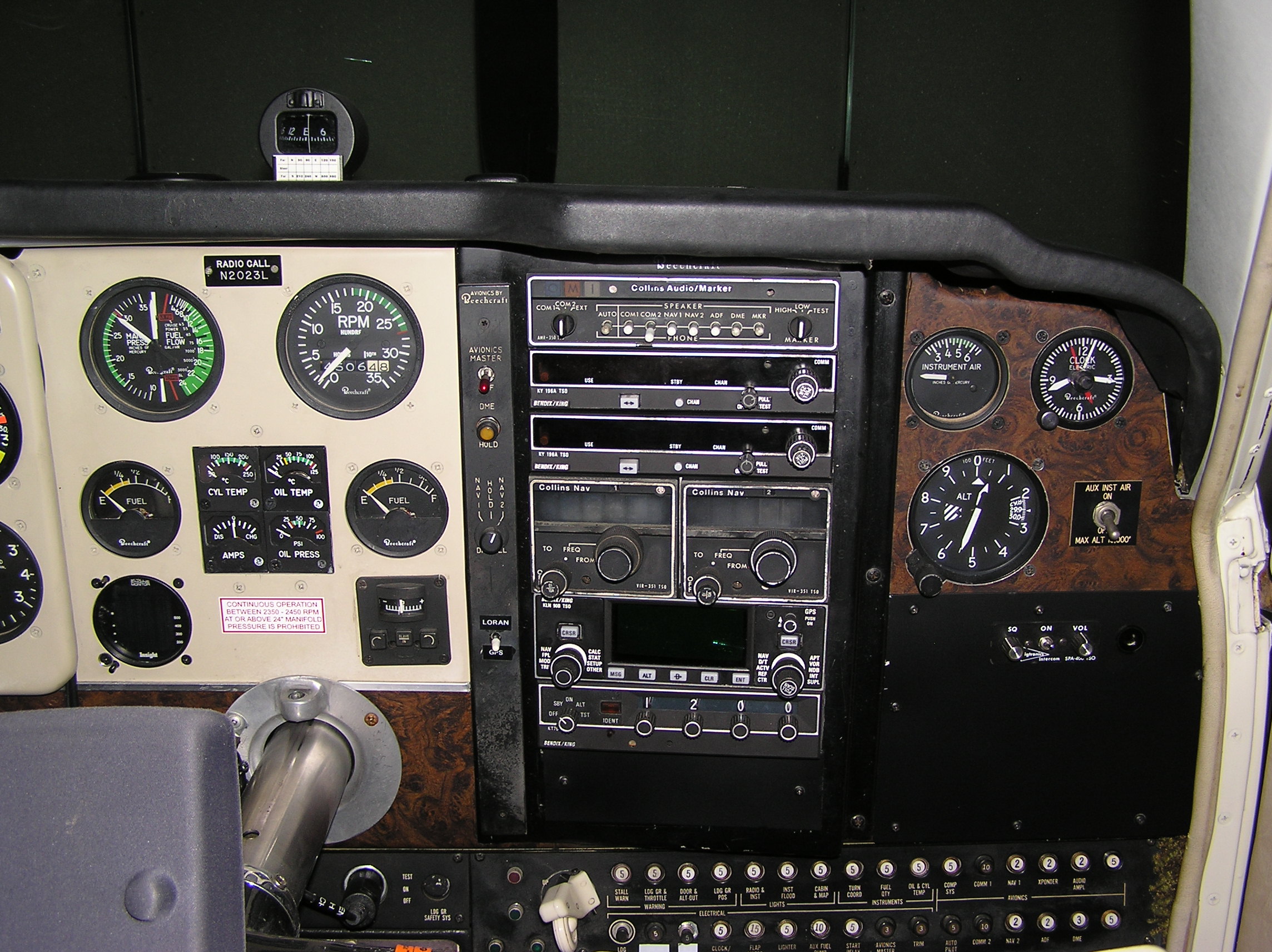

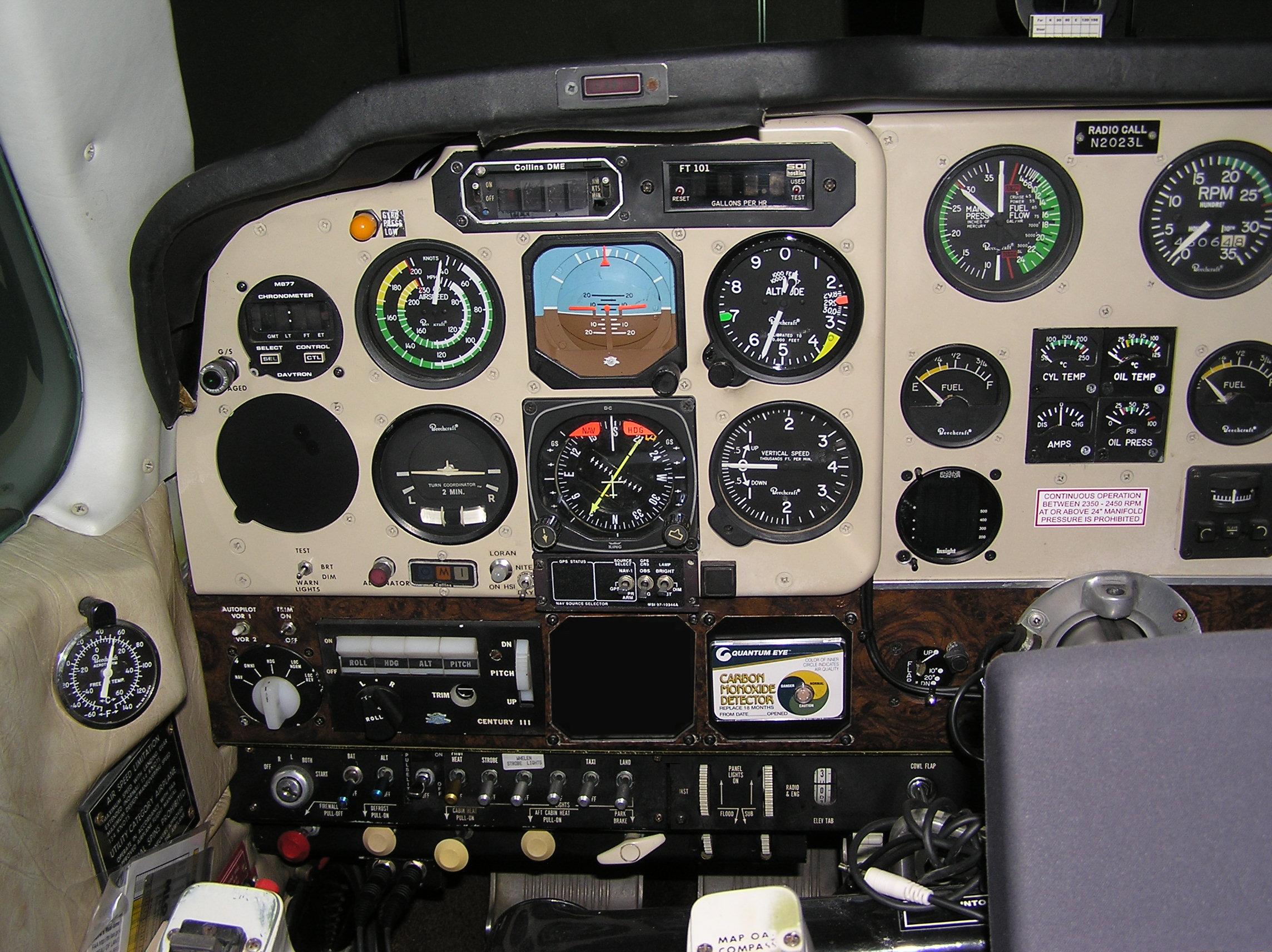

                        Avionics:


  • King KCS-55A Slaved HSI
  • Century III Autopilot (Electric Trim, Nav Tracking, Alt Hold, Full Approach Coupling)
  • Collins AMR-350 Audio Panel with Marker Beacon\
  • Dual King KY-196 Digital Coms (760 ch with flip-flop)
  • Dual Collins VIR-251 Navs (w/Dual GLS-350 Glideslopes)
  • King KT-76A Transponder
  • King KLN-90B GPS (IFR Approach Certified and curent)
  • Collins Microline Remote DME
  • Insight GEM 610  Graphic Engine Monitor (with Digital CHT/EGT)
  • Hoskins FT-101 Fuel Management System

Engine & Propeller





Engine Records

    • Continental IO-520BA (285 hp, 1700 Hour Recommended TBO)
    • 758 Hours Since Major Overhaul  in 2005 (Very low oil consumption and 70+/80 Compression all 6 cylinders; no cylinders OH'd since Major)
    • All new hoses, Lord Mounts at the Major Overhaul

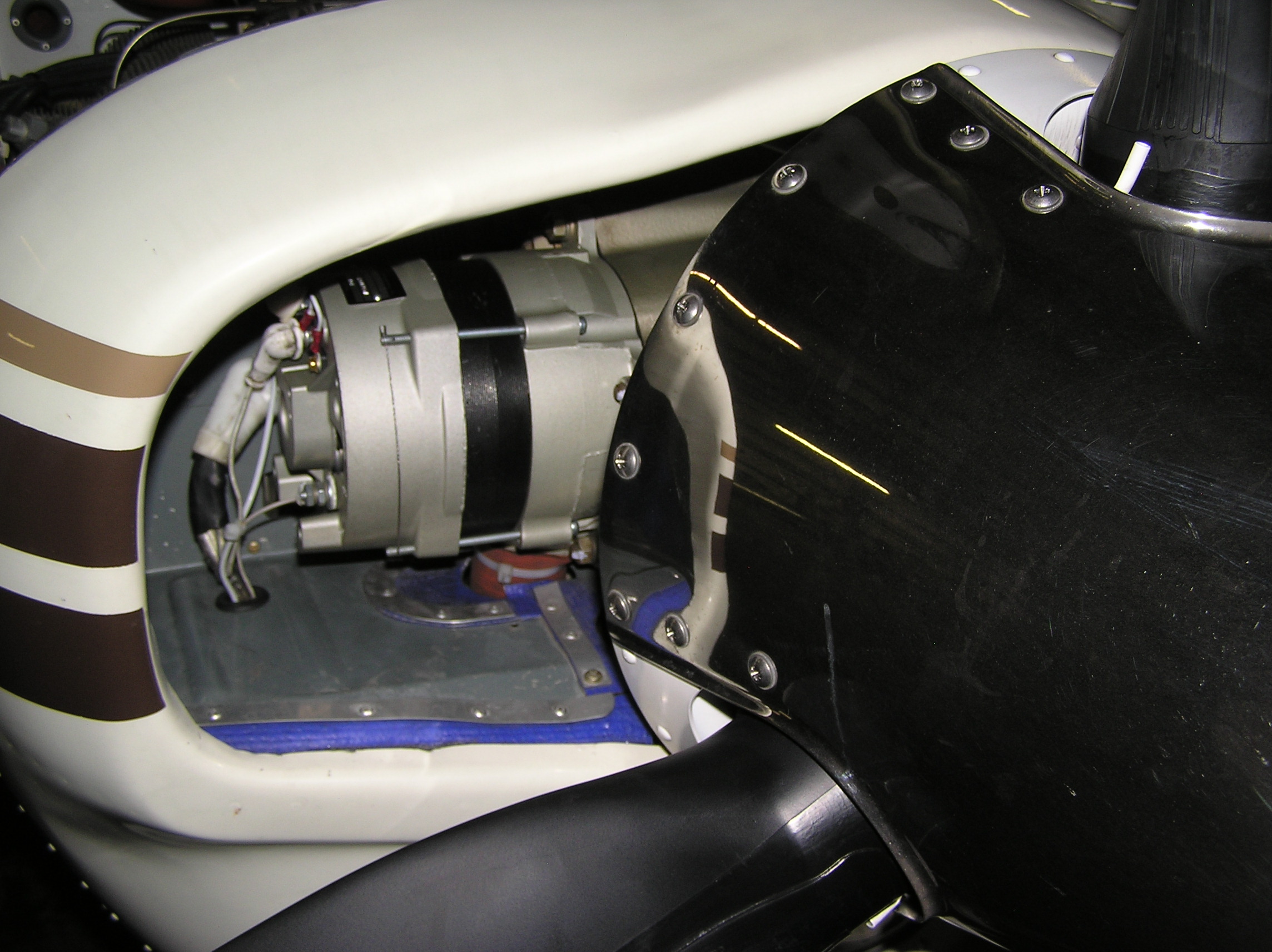

    • Near new alternator, primary vacuum pump, secondary vacuum pump
    • Phase III heavy case with 7th stud
    • VAR Crankshaft
    • GAMI injectors and Baffling
    • Tanis engine pre-heater (Oil sump and Cylinders)
    • 350 Hours Since Propeller Overhaul
    • Low time primary and secondary vaccuum pumps
This engine has full oil analysis records since the major, and a log of each start including the time flown and the oil level/oil additions made. The tanis heater installation, baffling and other details show a meticulous owners attention.  This is a very dry engine. This F33A will be delivered with extensive set of pictures of the major overhaul process (as well as other major maintenance)



Paint & Interior

Paint was re-done in 1995 in what looks to be the original scheme, brown and mocha on cream base. Paint is in good condition.  Windshield and front side glass was replaced in 1995 with new.

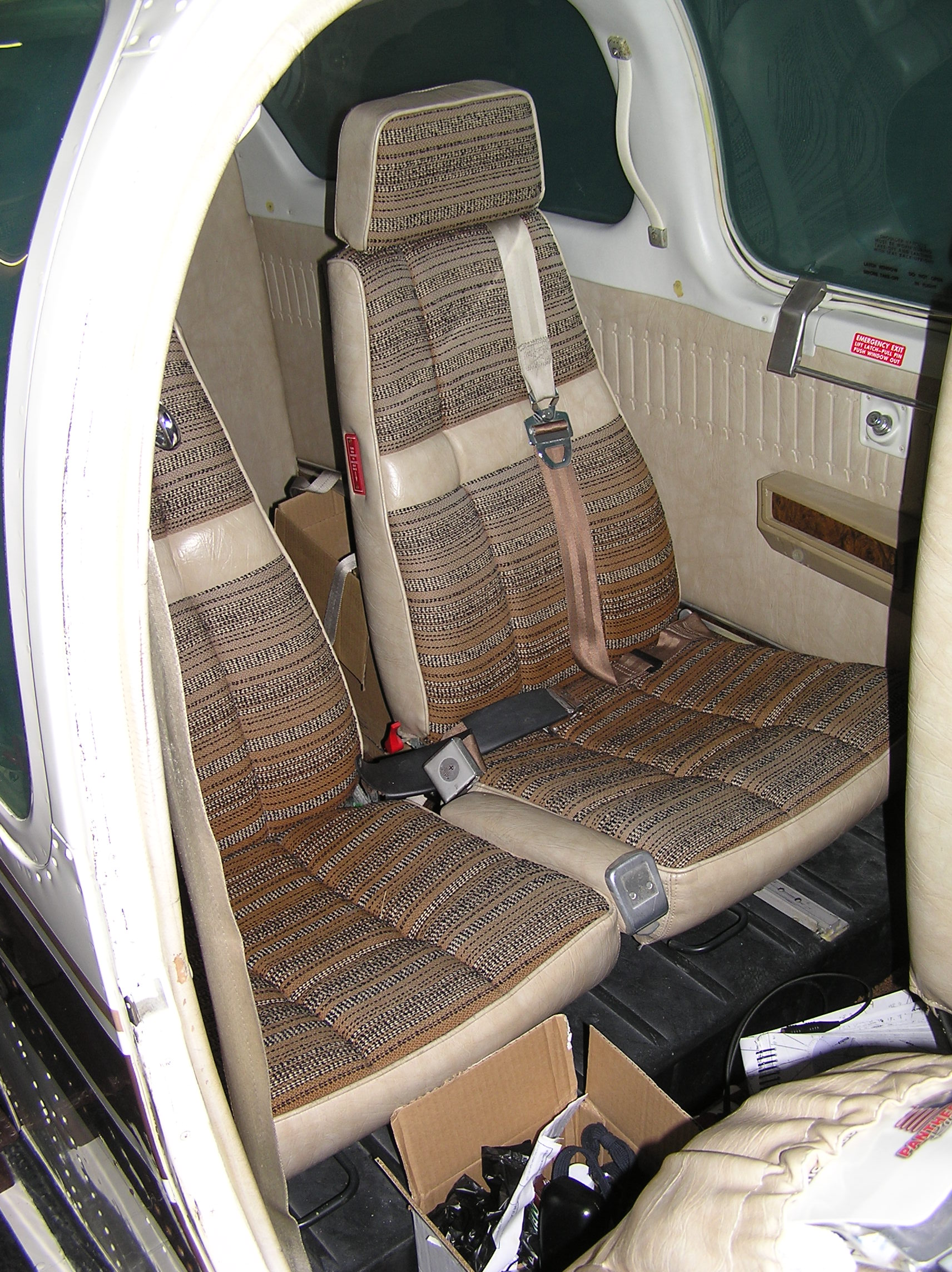

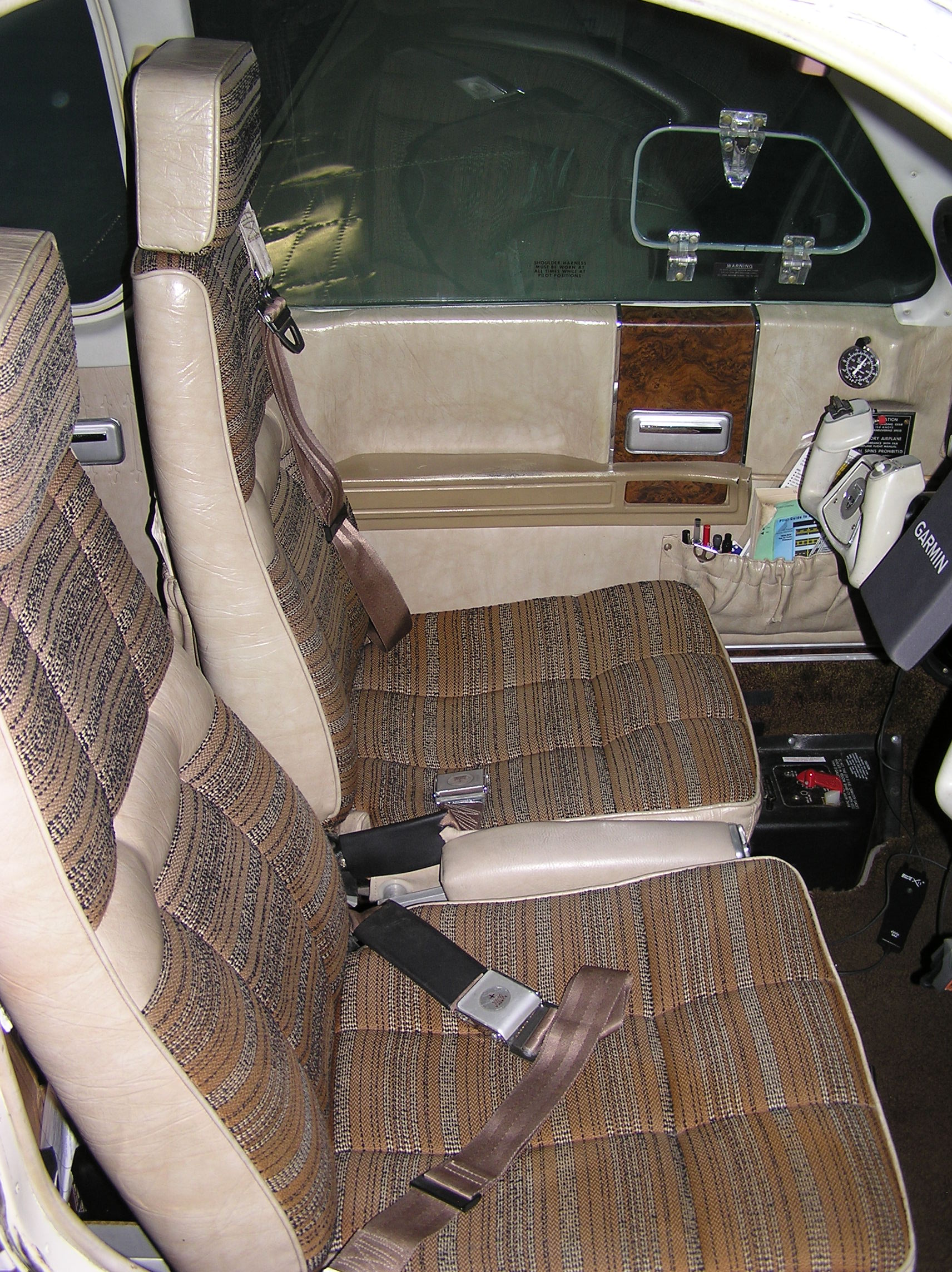

Interior is is original in earthtones.  Carpet has some staining and wear consistent with a well cared for 4500 hour plane.  Seats are in good condition, with no tears.






Priced at $117,650
How we arrived at our price

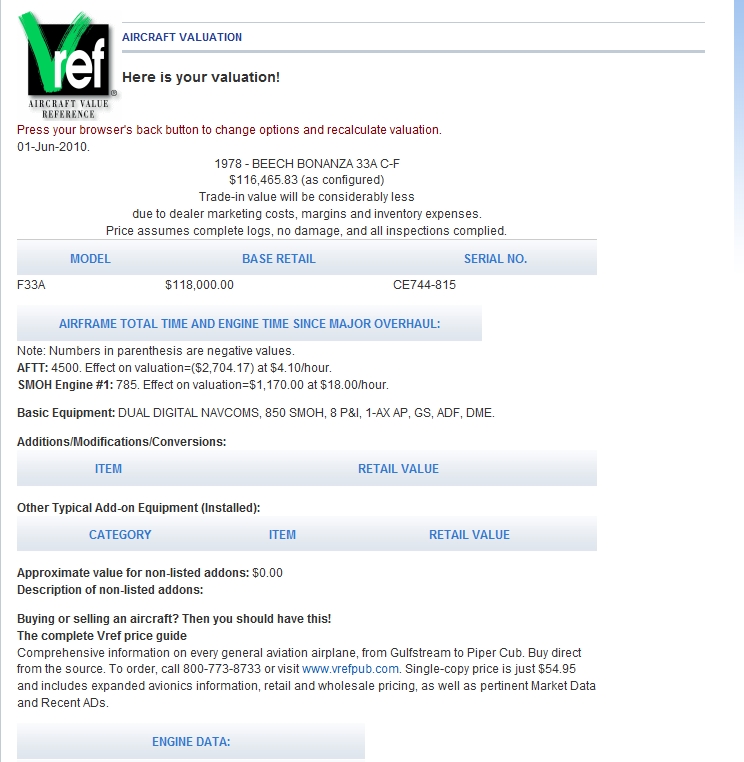

In the current market, many of the conservative banks are using Vref for their standard for making aircraft loans, as they are seeing lower appraisal values based on Vref.  We are using Vref base values for establishing the price on this aircraft.  Most of these base values have gone down at least 35% (on piston singles) from the highs in the late 1990's and early 2000's.

When appraising an aircraft, the base value is the starting point and applies to an "average" plane as specified by the appraisal tool. From there, the appraisal must be corrected up or down for engine time, total time, damage history, paint and interior condition,  significant modifications, and  avionics package installed.

Modifications and avionics that are in high demand can bring up to 85% of the current installation cost (for example a near new Garmin GNS-530 with WAAS), while more readily available and desirable modifications and avionics usually bring 35% - 50% of the new installed cost (a STOL kit or tip-tank kit).

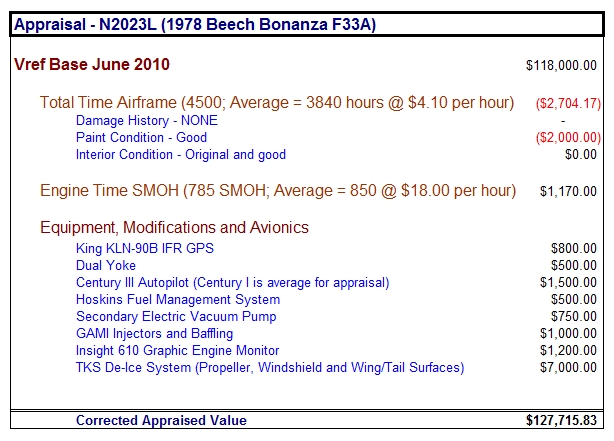

We started with the Vref base price corrected per Vref for total time and engine time.  We then added and subtracted as appropriate for all the non-standard equipment.

This aircraft will present no problems for a standard 80% loan for a qualified buyer.  Often we can package avionics and other upgrades into the loan amount.
